Huahe Now Offers the Station-operated Electric Pallet Stacking Truck: The Smart Choice for Efficient Indoor Warehouse Operations

Published by Zhejiang Huahe Forklift Co., Ltd. | July 2026 | www.huaheforklift.com



Warehouse managers worldwide are dealing with the same core challenge: moving more goods through the same floor space with fewer labor hours and lower operating costs. The right equipment choice at the stacker level — the machine doing repetitive, short-cycle pallet lifting and positioning work — can determine whether a facility runs efficiently or struggles every shift. Zhejiang Huahe Forklift Co., Ltd., an ISO 9001 and CE-certified manufacturer with a global export presence spanning 130+ countries, is proud to announce the official addition of the Station-operated Electric Pallet Stacking Truck to its warehouse equipment lineup on www.huaheforklift.com.

Designed for the real demands of indoor logistics, the Huahe Station-operated Electric Pallet Stacking Truck offers a 1,500 kg rated load capacity, multiple mast height configurations reaching up to 3,000 mm, and a highly compact form factor with an 800 mm overall width. Whether your operation runs a single shift at a manufacturing plant or continuous cycles at an e-commerce fulfillment center, this Station-operated Electric Pallet Stacking Truck is engineered to deliver reliable throughput, day after day.

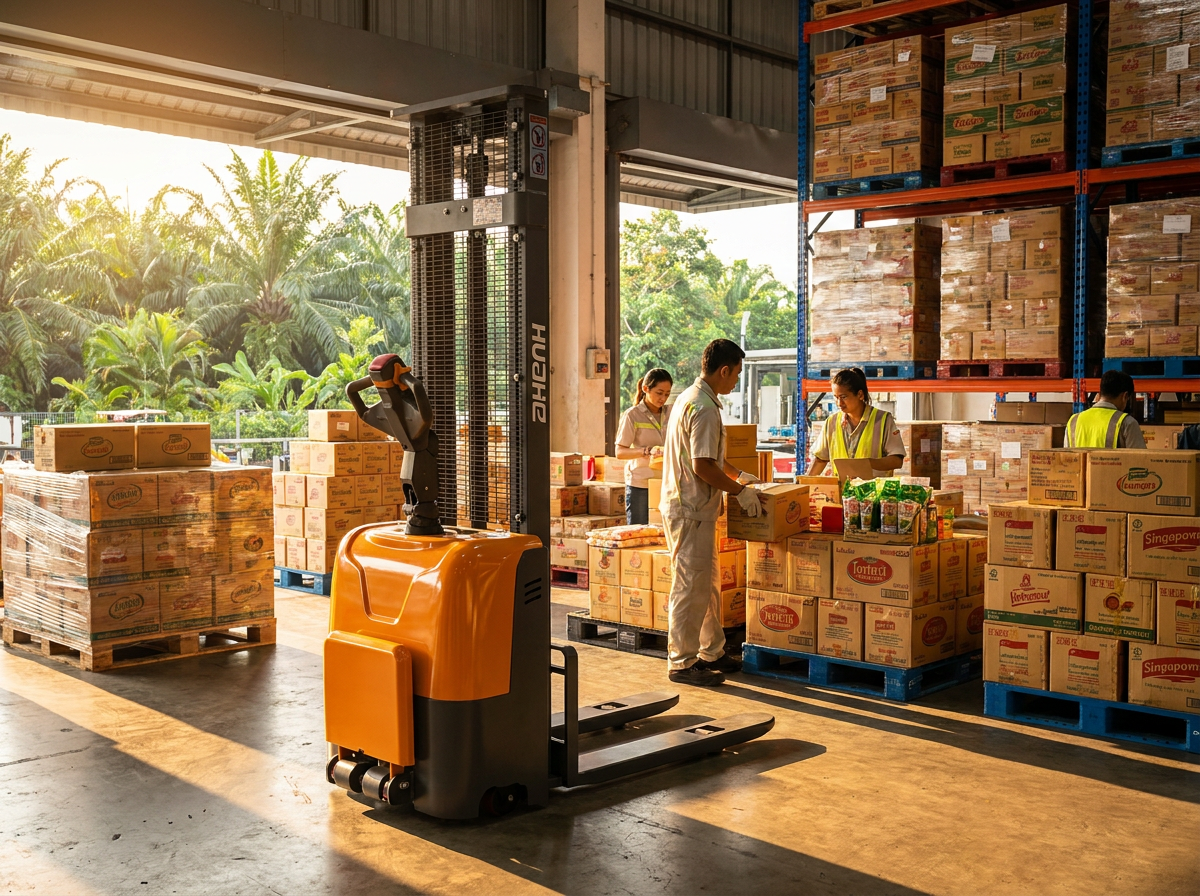

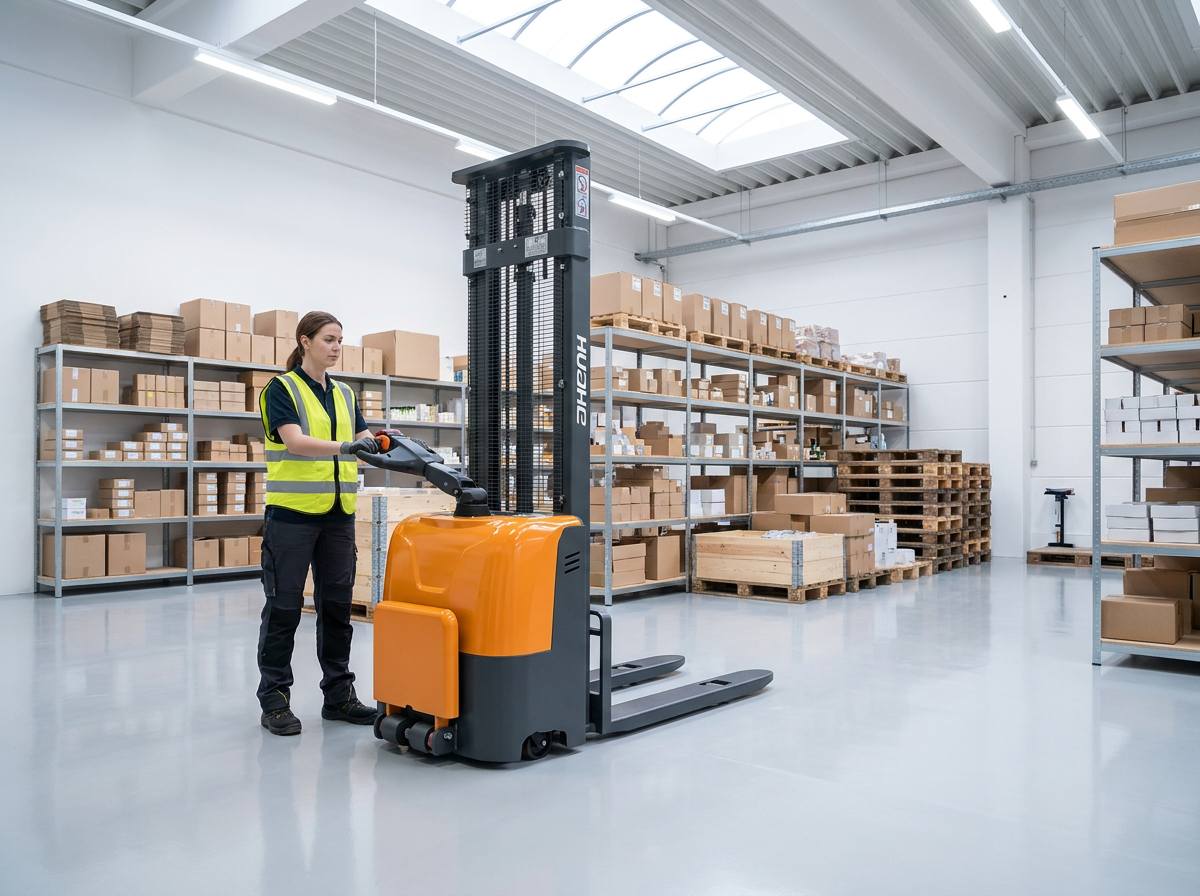

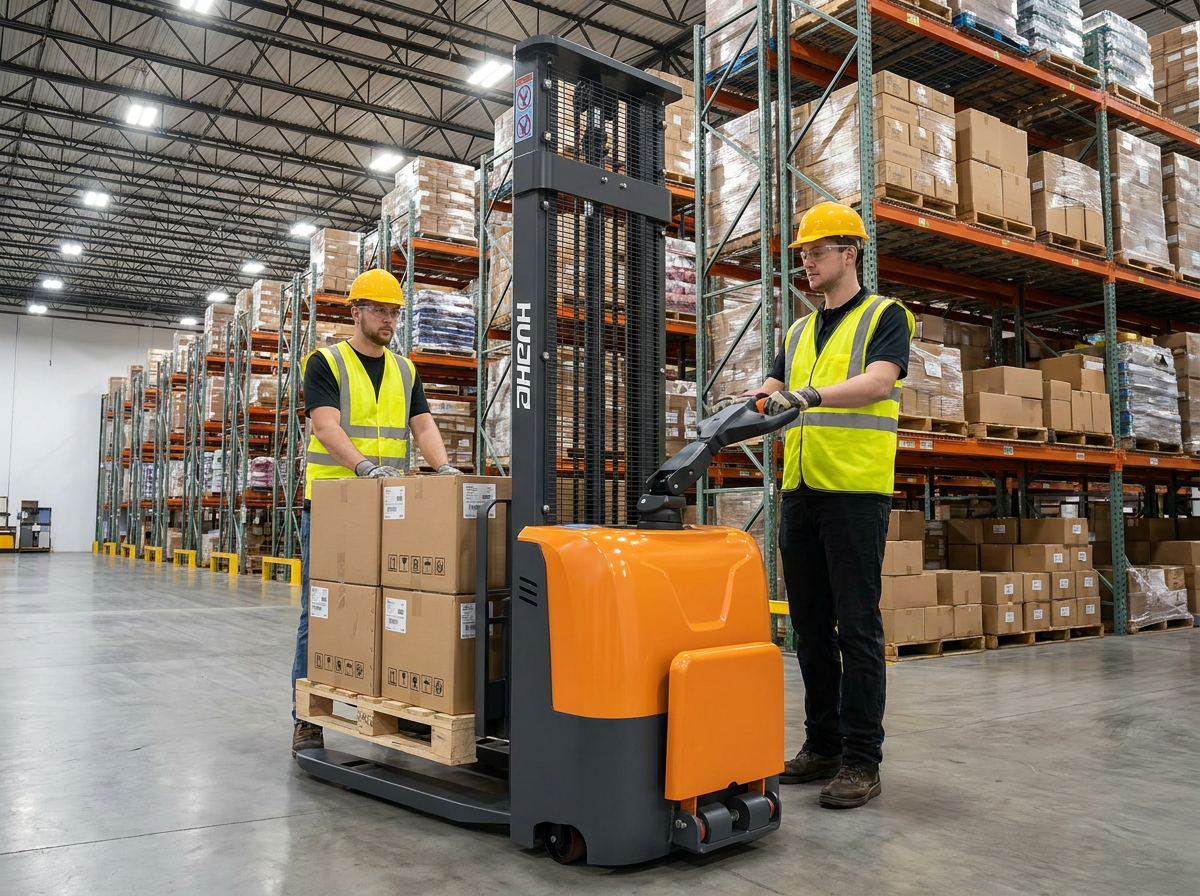

What Is a Station-operated Electric Pallet Stacking Truck?

A Station-operated Electric Pallet Stacking Truck is a powered warehouse vehicle where the operator stands on an integrated platform — or alternatively walks behind the machine — while controlling lifting, lowering, and travel functions. This design sits between a basic walk-behind pedestrian stacker and a full sit-down counterbalanced forklift, offering a practical middle-ground solution that combines the compactness of pedestrian equipment with the productivity advantage of a platform-riding operation mode.

The defining operational benefit of a Station-operated Electric Pallet Stacking Truck is efficiency in repetitive short-run tasks. Rather than the operator walking the full length of an aisle on every cycle — as with a pure pedestrian machine — the standing platform allows them to ride with the truck, reaching the next pallet position faster and with significantly less physical fatigue. Over the course of an 8-hour shift, this difference in operator fatigue directly translates into measurably higher picking and stacking accuracy.

Unlike a counterbalanced forklift, the Station-operated Electric Pallet Stacking Truck relies on straddle legs straddling the pallet rather than rear counterweight mass to maintain load stability. This means a much lower total machine weight — the Huahe model weighs just 560 kg including battery — and the ability to operate safely on standard warehouse floors without the structural reinforcement requirements associated with heavier counterbalanced equipment.



Full Technical Specifications

Huahe's engineering team has configured the Station-operated Electric Pallet Stacking Truck with a specification set that matches the practical needs of modern warehousing operations across multiple industries.

Load and Lifting Performance

Rated Load Capacity:

• 1,500 kg at a 600 mm load centre

Available Lifting Heights:

• 1,600 mm / 2,500 mm / 3,000 mm

Mast Lowered Height:

• 2,090 / 1,840 / 2,090 / 2,240 / 2,340 mm (configuration-dependent)

Mast Extended Height:

• 2,090 / 3,060 / 3,560 / 3,860 / 4,050 mm

Mast Down Height (fork lowered below ground level):

• 90 mm

The availability of three distinct lift height options gives procurement teams the flexibility to match the Station-operated Electric Pallet Stacking Truck precisely to their racking system, without paying for lift height they do not need. The 3,000 mm maximum lift height allows access to second-level pallet positions on standard adjustable beam racking systems, which is sufficient for the majority of ambient-temperature warehouse applications.

Dimensions and Aisle Requirements

Overall Width:

• 800 mm

Overall Length (with 1,150 mm forks):

• 1,748 mm

Overall Length (with 1,070 mm forks):

• 1,668 mm

Fork Length:

• 650 mm

Fork Size:

• 60×142×1,150 mm (or 1,070 mm)

Fork Width (adjustable):

• 300–695 mm

Turning Radius:

• 1,440 mm

Aisle Width Required (1,000×1,200 mm pallet):

• 2,298 mm

Aisle Width Required (800×1,200 mm pallet):

• 2,248 mm

The 2,248–2,298 mm aisle requirement is one of the most significant commercial advantages of the Station-operated Electric Pallet Stacking Truck configuration. Standard racking aisle widths in most warehouses fall in the 2,500–3,000 mm range, meaning this truck requires no aisle reconfiguration in the vast majority of existing facilities. Operators can begin using the machine immediately upon delivery, with no downtime for infrastructure changes.

The adjustable fork width — spanning 300 to 695 mm — further enhances versatility, allowing the same Station-operated Electric Pallet Stacking Truck to handle both standard wooden pallets and more irregular load footprints across different product categories.

Power System

Drive Motor Output:

• 0.65 kW

Lifting Motor Output:

• 2.2 kW

Battery Configuration:

• 2 × 24V / 105 Ah

Wheel Material:

• PU Polyurethane — non-marking, suitable for sensitive floor surfaces

The dual 24V / 105 Ah battery layout supports a full standard warehouse shift for most typical stacking cycle profiles. Polyurethane wheels are standard-fit, confirming the suitability of this Station-operated Electric Pallet Stacking Truck for food-grade facilities, pharmaceutical distribution, and any environment where floor cleanliness is a regulatory or operational requirement.

Travel Performance

Travel Speed (laden / unladen):

• 4.3 km/h / 4.5 km/h

Gradeability (laden / unladen):

• 6% / 15%

Total Machine Weight (with battery):

• 560 kg

Operation Mode:

• Standing platform or pedestrian



Five Reasons to Choose the Huahe Station-operated Electric Pallet Stacking Truck

1. Operator Productivity That Compounds Across Every Shift

The standing platform is not a comfort feature — it is a productivity mechanism. When an operator rides the Station-operated Electric Pallet Stacking Truck between positions rather than walking, travel time per cycle drops. In a typical warehouse environment running 60–100 pallet moves per shift, even a 15–20 second reduction in travel time per cycle accumulates to 25–35 minutes of recovered productive time daily per operator. Multiply that across a team and across months, and the throughput advantage is significant.

2. Compact Enough for Real-World Warehouse Layouts

At 800 mm wide and requiring as little as 2,248 mm of aisle space, the Station-operated Electric Pallet Stacking Truck fits comfortably into aisle configurations that many sit-down forklifts cannot enter safely. This allows warehouse operators to maintain existing racking layouts — protecting the capital already invested in racking infrastructure — while upgrading the handling equipment's capability and operator comfort level.

3. Zero Emissions, Minimal Maintenance

Electric drive eliminates exhaust, particulates, and carbon monoxide — making the Station-operated Electric Pallet Stacking Truck immediately compliant with indoor air quality standards across all major regulatory jurisdictions. For cold chain warehouses, food storage facilities, and any operation with ventilation limitations, this is not optional: it is a baseline requirement. Electric maintenance schedules are also considerably simpler than those of fuel-powered equipment. With no engine oil, no air filter, and no fuel system, service intervals focus on battery health, hydraulic fluid, and routine mechanical inspections.

4. Multiple Lift Height Options Without Multiple SKUs

The availability of 1,600 mm, 2,500 mm, and 3,000 mm lift configurations within the same Station-operated Electric Pallet Stacking Truck platform means procurement teams can specify exactly what the application requires. A staging area that only stacks ground-to-floor-level will be served by the 1,600 mm variant. A two-level pallet racking system requires the 3,000 mm version. Ordering only the lift height the operation needs avoids unnecessary capital outlay on over-specified machinery.

5. Backed by a Manufacturer with 130+ Country Export Experience

Choosing a Station-operated Electric Pallet Stacking Truck from Huahe is not just a product decision — it is a supply chain decision. Huahe's 12-month machine warranty, 20–30 day standard lead time, established spare parts network, and export documentation experience across 130+ international markets mean that the relationship extends well beyond the initial delivery. For importers, distributors, and fleet operators managing multi-site operations, supplier reliability is just as important as the machine's technical specification.



Ideal Applications for the Station-operated Electric Pallet Stacking Truck

The Huahe Station-operated Electric Pallet Stacking Truck is particularly well-suited to the following operational environments:

E-commerce and retail distribution centers

• requiring fast, repetitive pallet positioning across multiple storage levels

Food and beverage warehouses

• where non-marking PU tyres and zero-emission operation are mandatory

Pharmaceutical and healthcare distribution

• requiring clean-room compatible equipment with simple serviceability

Manufacturing intralogistics

• handling work-in-process materials between production stations and storage zones

Cold-chain and frozen storage facilities

• where operator exposure time should be minimized and machine reliability in low temperatures is essential

Third-party logistics (3PL) operators

• managing diverse product ranges requiring an adaptable stacking platform

If your operation currently relies on manual hydraulic stackers, basic pedestrian electric stackers, or aging counterbalanced equipment for light-duty indoor work, the Station-operated Electric Pallet Stacking Truck from Huahe represents a practical, cost-justified upgrade path.



About Zhejiang Huahe Forklift Co., Ltd.

Zhejiang Huahe Forklift Co., Ltd. is a professional forklift and warehouse equipment manufacturer based in Zhejiang, China. The company holds ISO 9001 and CE certifications and operates a modern production facility covering more than 40,000 square meters with an annual production capacity of 10,000 units. Huahe products are exported to 130+ countries and regions globally, supported by a mature international sales and after-service network.

The company's warehouse equipment portfolio includes the Station-operated Electric Pallet Stacking Truck, Forward-moving Electric Forklift, Electric Pallet Stacker, Electric Pallet Truck, and Lithium Battery Electric Pallet Truck — covering the full range of indoor material handling applications from flat transport to high-rack access.



Frequently Asked Questions

Q: What is the maximum lifting height of the Station-operated Electric Pallet Stacking Truck? A: The maximum available lift height is 3,000 mm. Models with 1,600 mm and 2,500 mm lift heights are also available.

Q: What aisle width does the Station-operated Electric Pallet Stacking Truck require? A: For a standard 1,000×1,200 mm pallet, 2,298 mm is required. For an 800×1,200 mm pallet, 2,248 mm is sufficient.

Q: Can the Station-operated Electric Pallet Stacking Truck be used in food-grade environments? A: Yes. The standard polyurethane wheels are non-marking, and the electric drivetrain produces zero exhaust emissions, making it suitable for food storage, pharmaceutical, and clean-area applications.

Q: What is the rated load capacity? A: 1,500 kg at a 600 mm load centre.

Q: What is the warranty period? A: Huahe provides a 12-month warranty covering the complete machine, starting from the on-board date.

Q: How long is the standard lead time? A: 20–30 working days after receipt of advance payment. Stock availability may allow earlier shipment for some configurations.

Q: Can we specify a custom color? A: Yes. Please provide your required RAL color code at the time of order.
