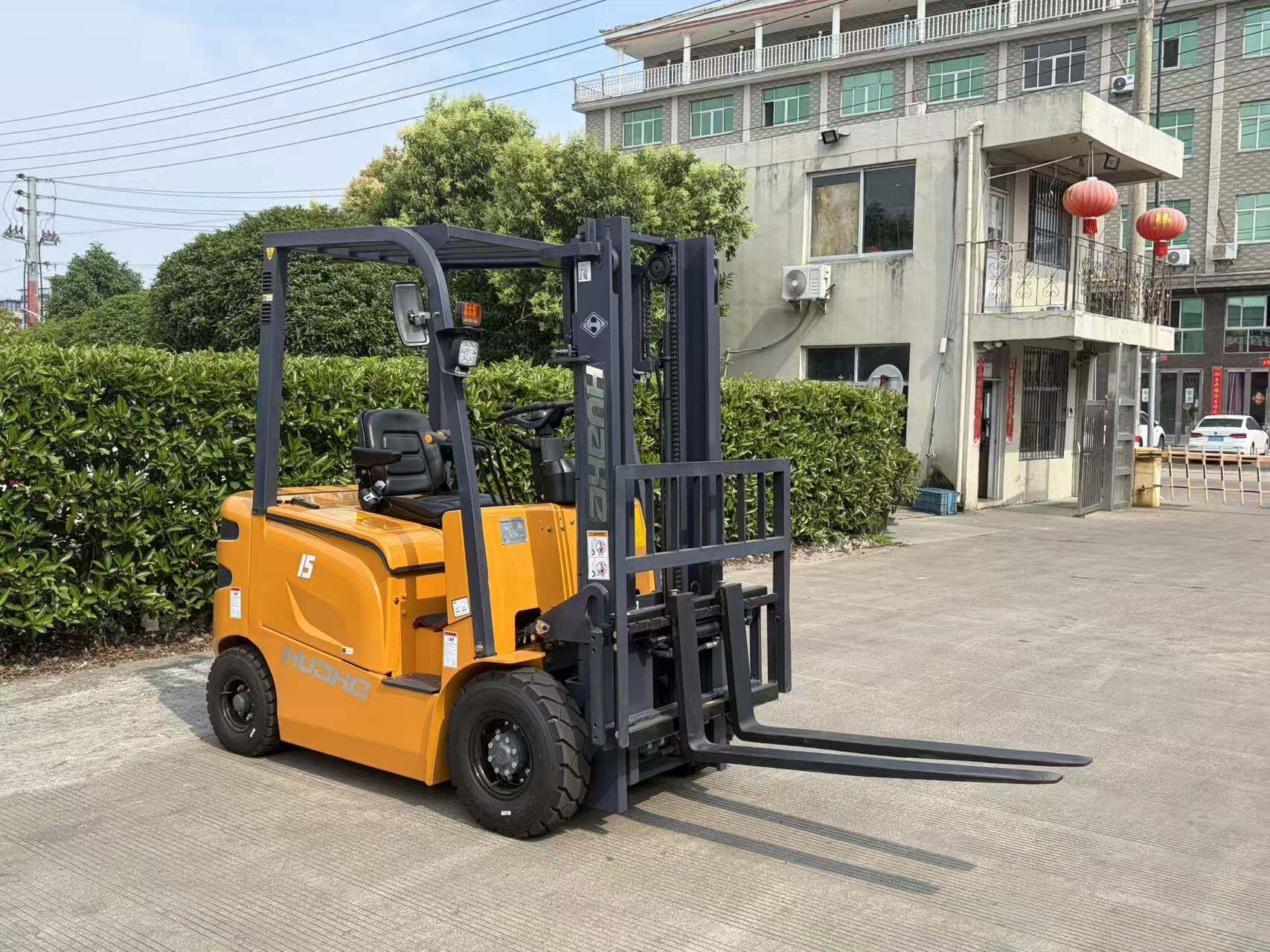

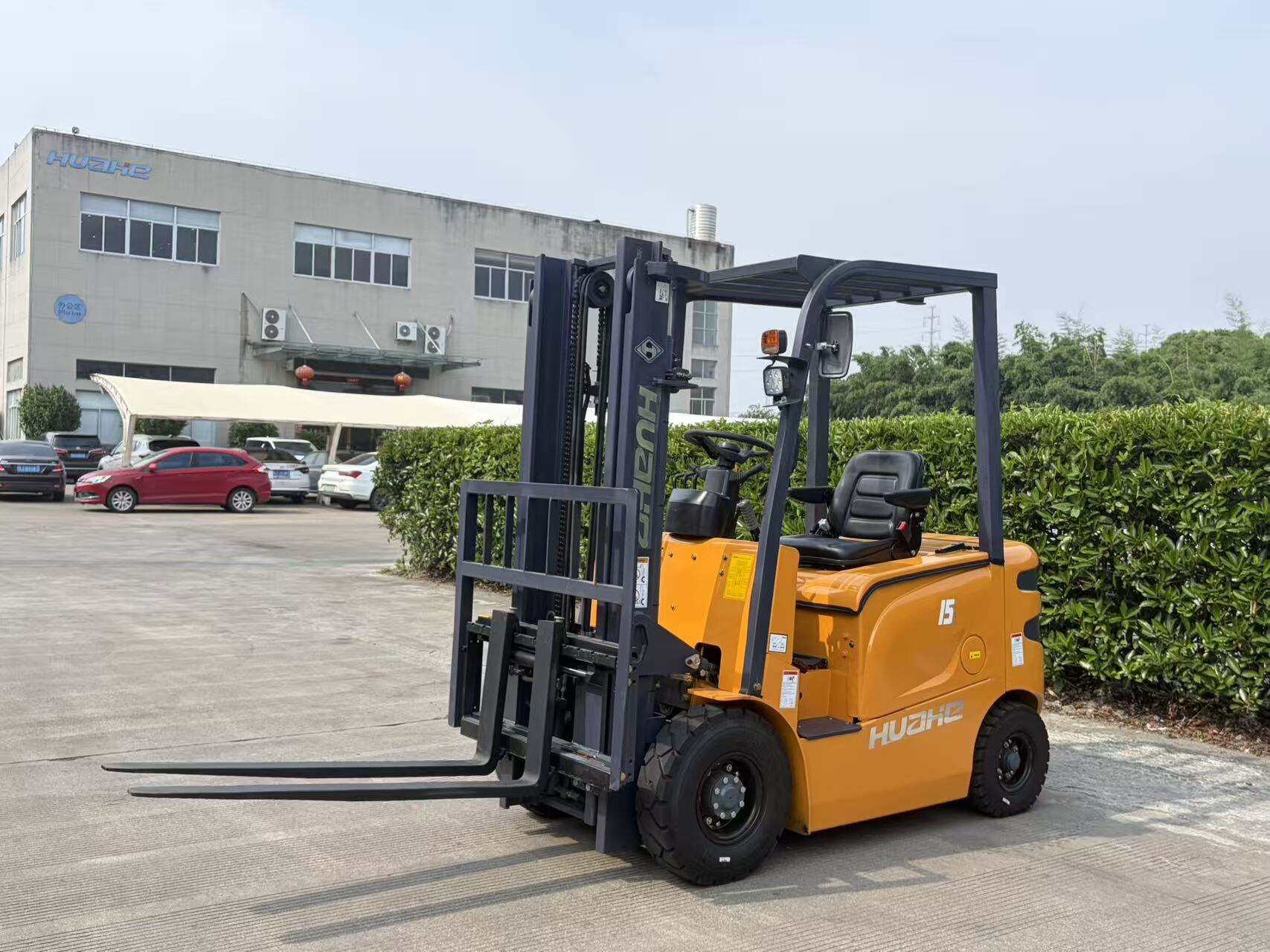

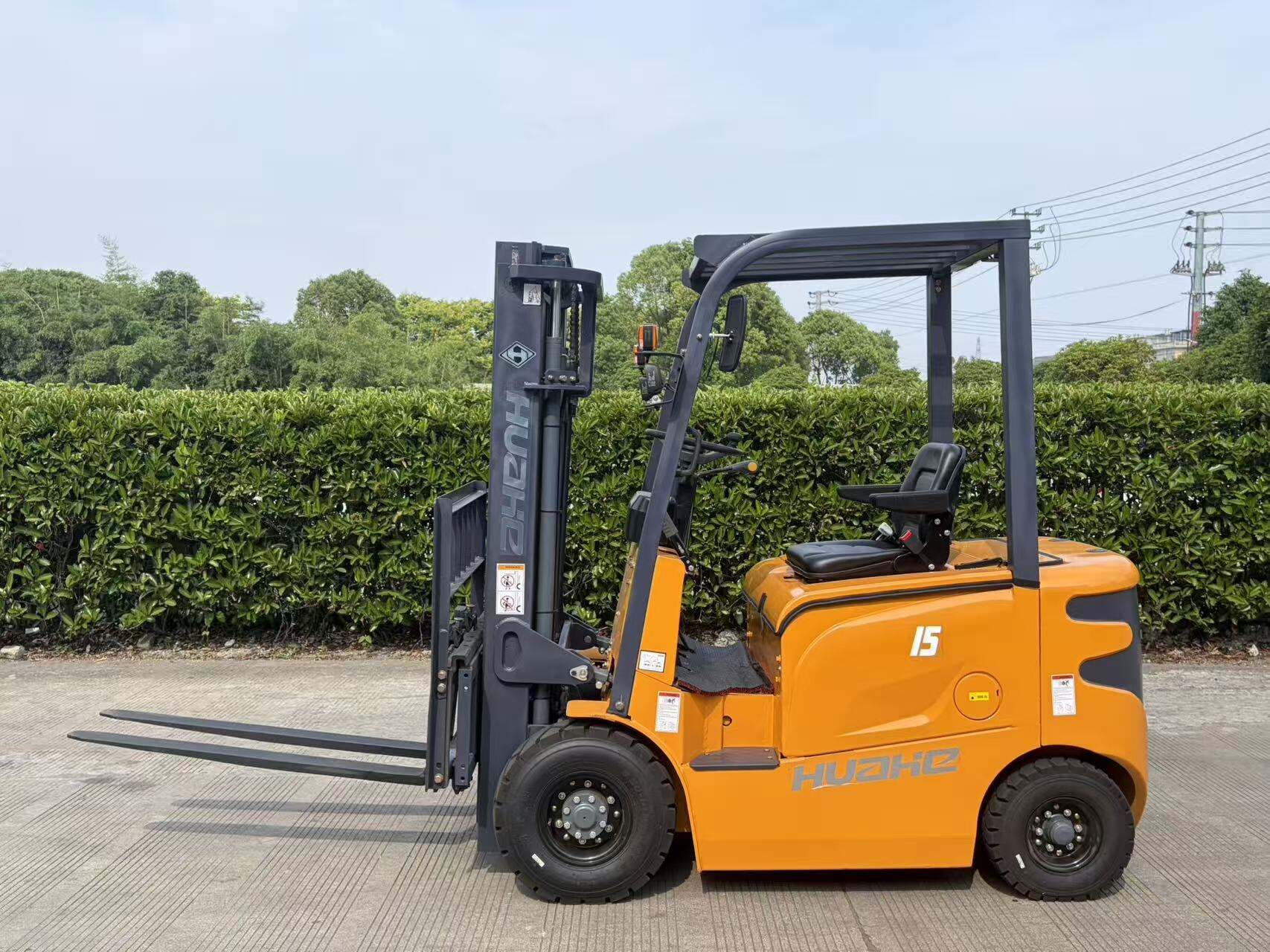

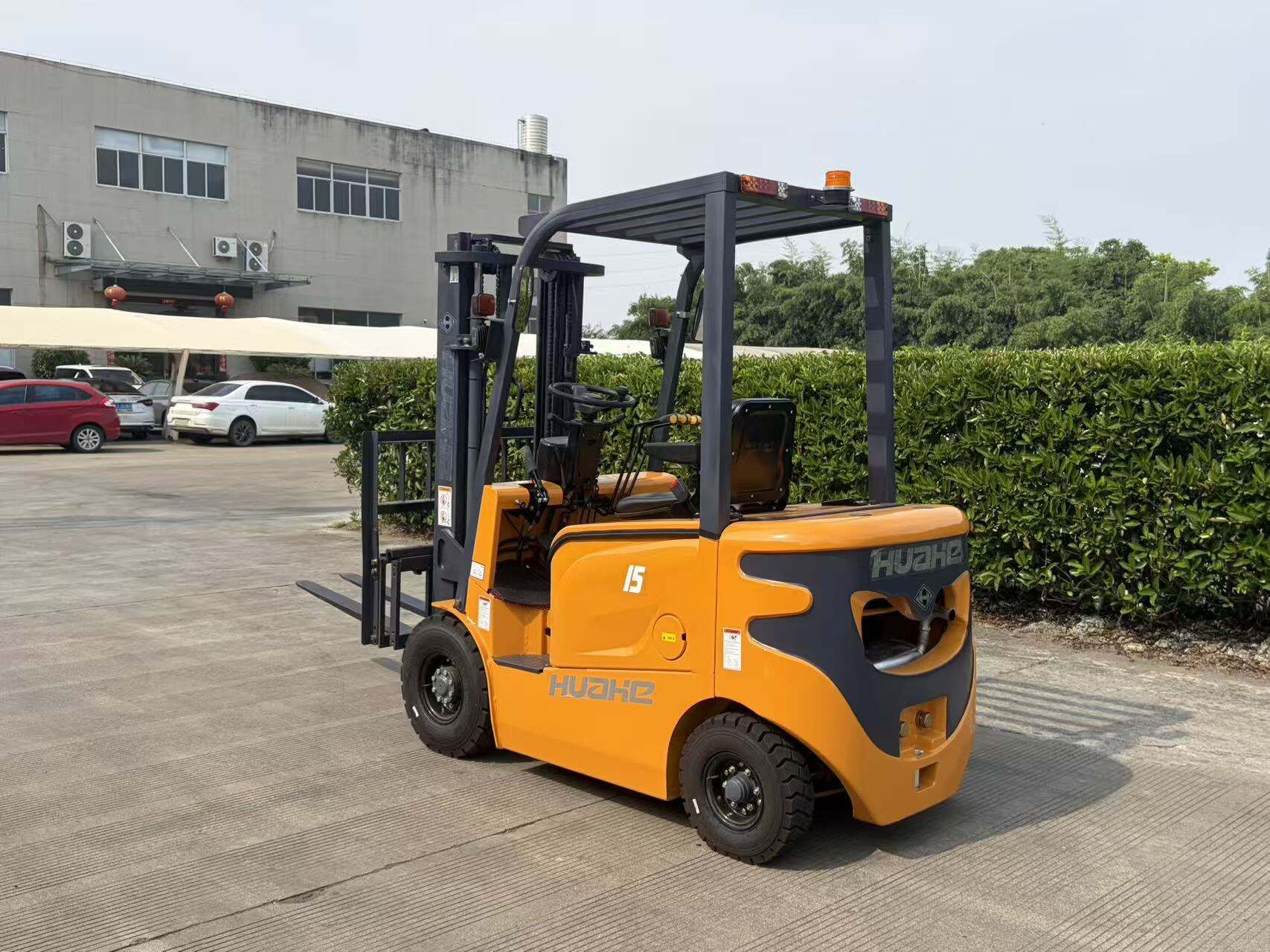

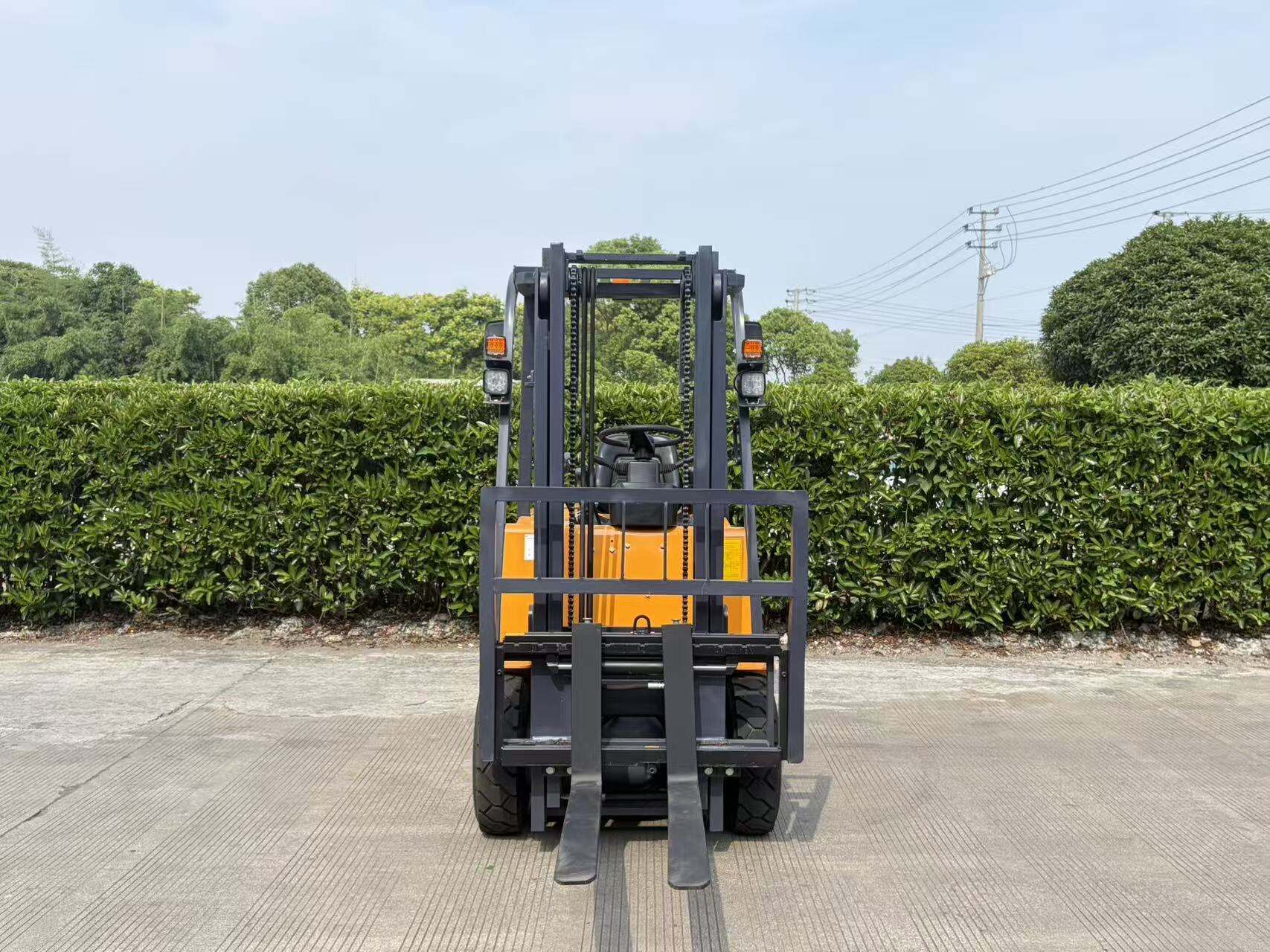

The HH15Z is a high-performance, compact diesel forklift developed by Zhejiang Huahe Forklift Co., Ltd. , a national high-tech enterprise with over 40,000 square meters of production facilities and an annual capacity of 10,000 units. This model is specifically engineered for light to medium-duty logistics, warehousing, and material handling operations where space is limited but reliability and efficiency cannot be compromised.
With a rated capacity of 1,500 kg and a 500 mm load centre, the HH15Z delivers the perfect balance between compact dimensions and robust lifting capability. Whether you are moving pallets in a crowded warehouse, loading trucks at a distribution centre, or managing inventory in a manufacturing facility, the HH15Z offers exceptional manoeuvrability, low fuel consumption, and easy maintenance.
This forklift is part of Huahe’s renowned diesel series (1.5 – 12.0 tons), which has been exported to more than 130 countries and regions. The HH15Z is CE certified and built in compliance with ISO9001 quality management standards, ensuring that every machine meets international requirements for safety, performance, and durability.
If you are looking for a cost-effective, space-saving diesel forklift that can handle daily material handling tasks with ease, the HH15Z is the ideal choice for your fleet.
Key Advantages (Bullet Points)
Compact and Agile Design
With an overall width of only 1090 mm and a minimum turning radius of 1960 mm, the HH15Z can operate efficiently in narrow aisles and confined spaces. Its total length without fork is just 2200 mm, making it one of the most space-efficient 1.5-ton diesel forklifts in its class.
Reliable Diesel Engine (490BGP-262)
Powered by a proven 4-cylinder diesel engine with 40 kW output at 2650 rpm and a peak torque of 148 N·m at 1800 rpm, the HH15Z delivers consistent power for long working hours. The engine displacement of 2540 cc ensures sufficient low-end torque for smooth starts and ramp climbing.
High Lifting Performance
The HH15Z offers a maximum lift height of 3000 mm (options available) and a free lift height of 100 mm, allowing you to stack goods efficiently even in buildings with low ceilings. Lifting speed (full load) reaches 450 mm/s, reducing waiting time during vertical movement.
Excellent Travel Speed and Gradeability
Travel speed at full load is 18.5 km/h, while the unladen speed reaches 20 km/h – ideal for rapid repositioning between tasks. The forklift can handle 20% gradeability, ensuring stable operation on ramps and uneven surfaces.
Robust Hydraulic Transmission
Equipped with a hydraulic transmission system offering 1 forward / 1 reverse gear, the HH15Z provides smooth power delivery and reduced driver fatigue. The working pressure of 17.5 MPa guarantees responsive lifting and tilting.
Comfortable and Safe Operation
The overhead guard height is 2170 mm, providing ample headroom and protection. The mast tilt angles of 6° forward / 12° backward improve load stability and fork alignment. The operator’s compartment is designed for easy entry/exit and clear visibility to the fork tips.
Low Maintenance and Long Service Life
Tires are 6.50-10-10PR (front) and 5.00-8-10PR (rear) , offering excellent wear resistance on concrete and asphalt. The battery is a standard 12V/80Ah unit, easy to replace. All service points are conveniently located for quick checks.
Cost-Effective Operation
Compared to electric alternatives, the HH15Z has a lower initial purchase cost and operates reliably in harsh environments (dust, rain, temperature variations). Fuel efficiency is optimized thanks to the precisely calibrated 490BGP-262 engine.
Manufacturing & Process Highlights
1. Automated Production Lines
Huahe has introduced world-class automated welding robots, intelligent painting systems, and laser cutting machines to ensure every HH15Z chassis and mast component is manufactured with high precision. This automation minimizes human error and guarantees consistent quality from unit to unit.
2. Strict Quality Control System
The company operates a first-level industry quality supervision and inspection organization. Each HH15Z undergoes rigorous testing – including load tests, brake tests, and hydraulic system leak tests – before leaving the factory. The ISO9001:2015 management system and CE certification provide independent verification of safety and performance.
3. Advanced Painting and Corrosion Protection
Frames and masts are treated with an intelligent multi-stage painting process that includes shot blasting, primer application, and topcoat curing. This results in excellent corrosion resistance, even when the forklift is used outdoors or in high-humidity environments.
4. Digital Manufacturing Management
Huahe has implemented an intelligent manufacturing execution system (MES) that digitally controls procurement, production scheduling, quality checkpoints, and warehouse logistics. Every HH15Z can be traced back to its raw material batch and assembly date, ensuring full transparency for warranty and after-sales service.
5. R&D Backed by a Dedicated Lithium Battery & Diesel Centre
Although Huahe is known for its new energy lithium-battery forklifts, the company’s diesel R&D centre continues to refine combustion efficiency and noise reduction. The HH15Z benefits from improved intake and exhaust layouts derived from the same engineering team that develops the HEF electric series.
6. Global Service and Spare Parts Network
With distributors in over 130 countries, Huahe ensures that genuine spare parts for the HH15Z engine, transmission, mast cylinders, and filters are readily available. The company also provides technical documentation and remote support to minimize downtime.
